critmachine
Fixed criterium
Meet the critmachine
Specs
| Tubing | Oversized Dedacciai Zero |
| Dropouts | Stainless steel horizontal |
| Fork | Columbus pista |
| Bottom bracket | BSC 68mm |
| Headset | Tapered 1”1/2 integrated (IS42 - IS52) |
| Seatpost diameter | 31,6mm |
| Spacing | 100mm front, 120mm rear |
| Tire clearance | 28mm |
| Approximative weight | 1800 grams in size Medium/Large (frame only) |
| Brakes | none |
The fixed gear frame made for races. With its lightweight oversized tubes and handmade steel construction, the CritMachine is just as performant and stiff as its carbon or aluminum counterparts, but offers an unbeatable durability. Whether you're sprinting for the finish line or navigating through tight corners, this frame delivers the speed and agility a serious racer needs to dominate the competition.
This high-performance frameset is designed with one thing in mind - winning races. The aggressive geometry makes it incredibly responsive and fast, while the steel construction provides the perfect balance of stiffness and comfort. Plus, with its sleek and stylish design, the CritMachine looks just as good as it performs.
If you're serious about criterium racing, then the CritMachine is the frame for you. It's the best in its class and is sure to help you reach new heights of speed and performance.
Frame features
Welding type
Fillet brazed with a smooth filed finish
Seat Stays Shape
Straight

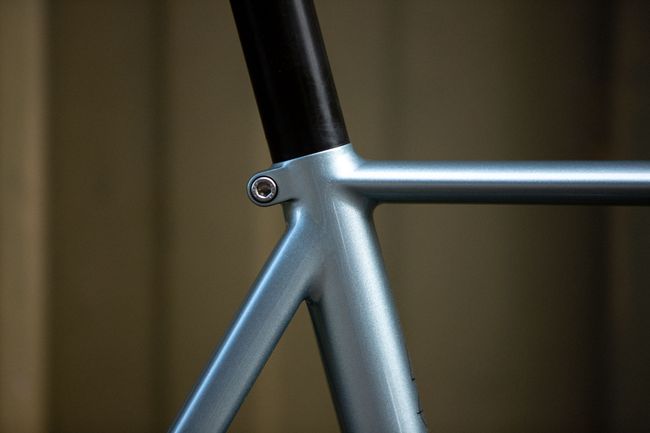

Seat clamp
Brazed
Tube shape
Round and ovalized
Serial number
Stamp brass plate under the bottom bracket shell
Frameset pricing
from 2540 €
Pre-tax: 2117 €
Join the waiting list
Geometry
| critmachine | XS-S / 51 | S-M / 53 | M-L / 55 | L-XL / 57 |
|---|---|---|---|---|
| A / Effective Top Tube | 510 | 530 | 550 | 570 |
| B / Seat tube (c to c) | 500 | 520 | 540 | 565 |
| C / Chainstay | 380 | 385 | 385 | 385 |
| D / BB drop | 52 | 52 | 55 | 55 |
| E / Head tube | 130 | 145 | 160 | 185 |
| F / Reach | 379 | 391 | 406 | 415 |
| G / Stack | 518 | 534 | 555 | 576 |
| H / Wheelbase | 930 | 947 | 958 | 972 |
| I / Axle to crown | 367 | 367 | 367 | 367 |
| R / Fork rake | 35 | 35 | 35 | 35 |
| X / Seat tube angle | 76 | 75,5 | 75,5 | 75 |
| Y / Head tube angle | 73,5 | 74 | 74,5 | 74,5 |
Options
Drilled fork
included
Water bottle bosses
+ 55 €
Zero or one pair included in price, more in option
Zero or one pair included in price, more in option
Stainless steel brazed head badge
+ 35 €
Integrated steel seat tube
+ 230 €
Comes its custom 3D printed aluminium seat mast
Comes its custom 3D printed aluminium seat mast
Custom stem
+ 320 €
Choose your length and stem angle
Choose your length and stem angle
Custom geometry
+ 150 €
Within our size chart, if you’re outside of the chart, we’ve got you covered for free!
Within our size chart, if you’re outside of the chart, we’ve got you covered for free!
Paint
Chameleon or Candy
Solid color painted logos
+ 180 €
Paint effect two colors
Solid color painted logos
+ 280 €
Paint effect one color
Solid color painted logos
+ 220 €
One color glitter
Solid color painted logos
+ 140 €
Three color fade
Solid color painted logos
+ 90 €
Two color fade
Solid color painted logos
included
Solid color
Solid color painted logos
included
Full custom on request (gold leaf, marble effect, splatter, chameleon fade or whatever you have in mind just get in touch with us and we will discuss it together)
Frameset pricing
from 2540 €
Pre-tax: 2117 €
Join the waiting list
