falcon disc

Road disc brakes

Specs

Frame material	Steel
BB	T47 68mm
Fork	Quokka Steel (Carbon fork also available)
Spacing	12 x 100 mm front, 12 x 142 mm rear
Headtube	Tapered 1"1/2 (IS52/IS52)
Seatpost diameter	31,6mm
Tire clearance	700 x 40 mm
Brakes	Flat Mount 160mm

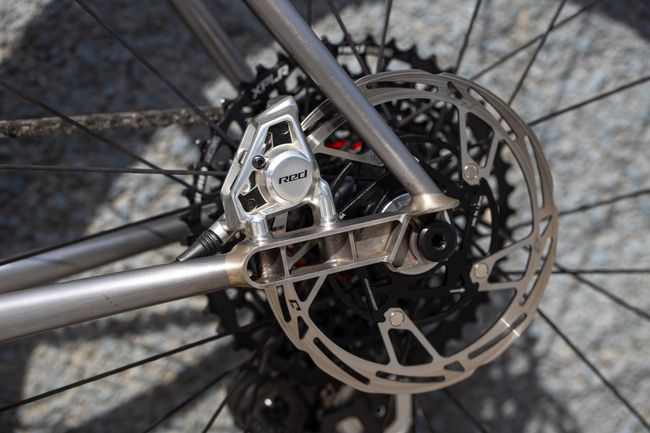

Dropouts	Quokka UDH - 12mm
Weight	About 1850 grams in size Medium (frame only)

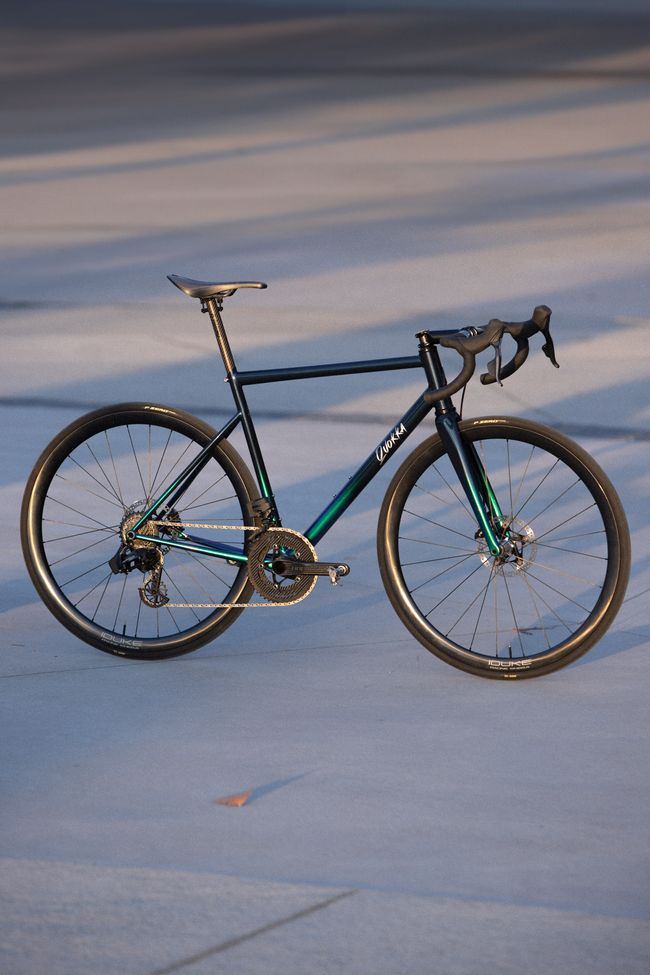

Here in its disc brake version, the Falcon is a steel road frameset that combines performance, comfort and modernity. With its oversized steel tubes and its workshop-designed and built steel fork, it will easily accompany you on long mountain rides as well as ultra-distance races. Thanks to its modern geometry coupled with the well-known qualities of steel, this updated Falcon perfectly meets all your needs for versatility and performance. Its design has been rethought to incorporate the new UDH dropout standard, offer bigger tire clearance (up to 40mm as standard with 700c wheels, but up to 45mm in the custom version) and a completely unique fork design imagined and produced in our workshop to offer a 100% custom solution without relying on mass-produced models. When you choose the Falcon, you are choosing a frame that is as high-performance as it is unique, but also one that embodies exceptional craftsmanship and quality. Carefully handcrafted, each frameset is a one-of-a-kind piece that will set you apart from the rest of the pack.

Builds

Frame features

Routing type

Internal not guided

Dropouts

Quokka design, CNC Stainless 17-4 PH

Welding type

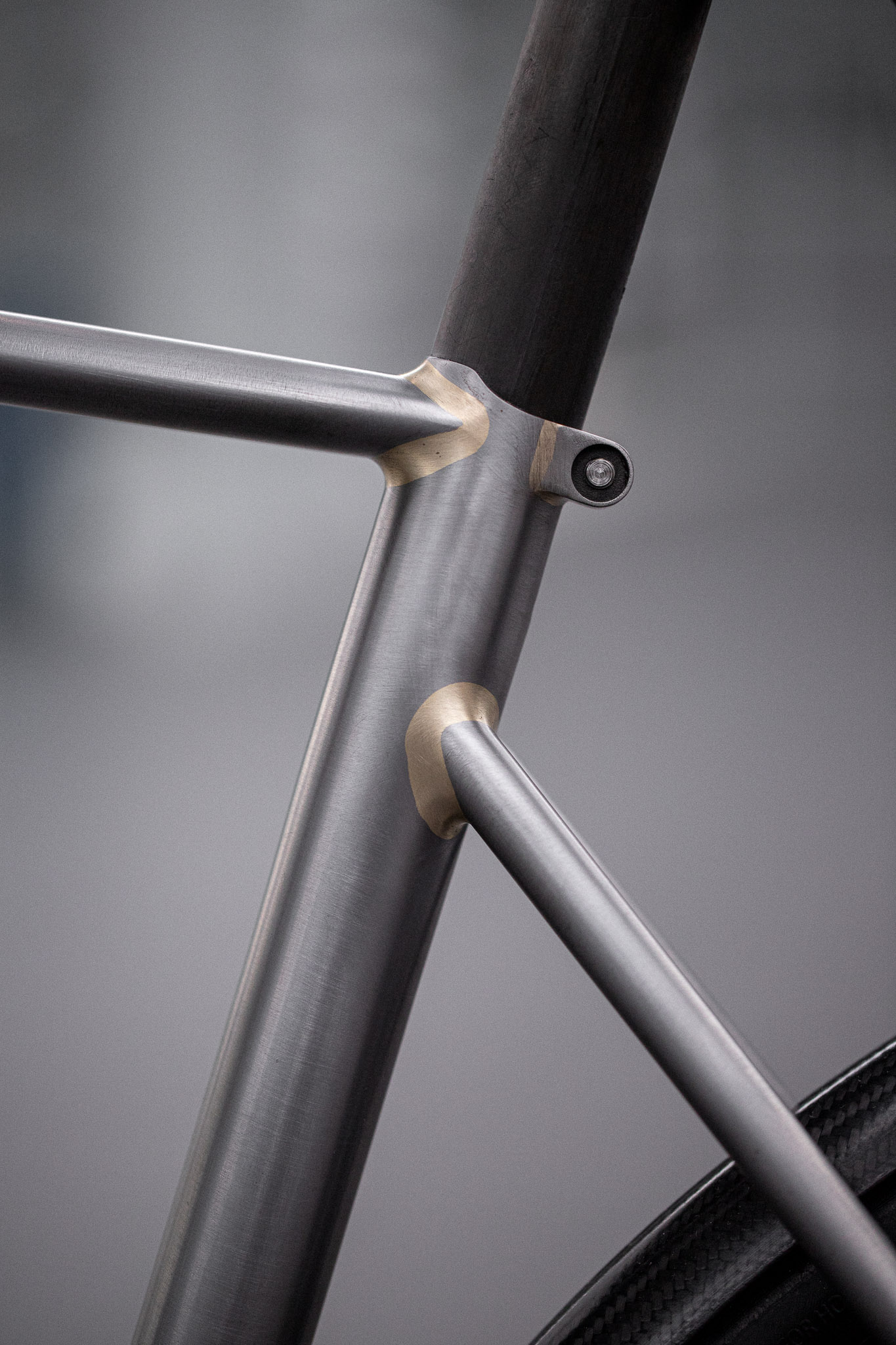

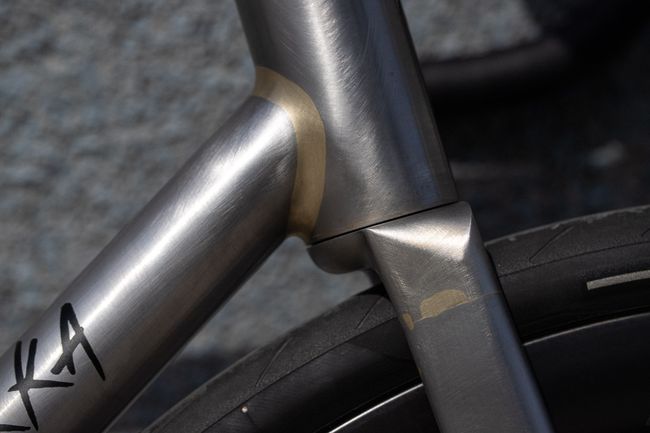

Fillet brazed with a smooth filed finish

Seat clamp

Brazed

Tubing

Columbus Spirit and Columbus Max

Serial number

Stamp brass plate under the bottom bracket shell

Browse options below ↓

Learn more about the ordering process

Geometry

falcon disc	XS / 49	S / 51	M / 53	L / 55	XL / 57
A / Effective Top Tube	490	510	530	550	570
B / Seat tube (c to c)	440	450	470	495	515
C / Chainstay	405	405	405	405	405
D / BB drop	72	70	70	68	68
E / Head tube	96	110	125	155	175
F / Reach	352	364	370	377	391
G / Stack	510	523	537	566	587
H / Wheelbase	938	954	963	976	991
I / Axle to crown	368	368	368	368	368
R / Fork rake	45	45	45	45	45
X / Seat tube angle	75	74,5	73,5	73	73
Y / Head tube angle	72	72	72,5	73	73,5

Options

Braze-on derailleur hanger

+ 55 €

Stainless steel brazed head badge

+ 55 €

Extra water bottle boss

+ 55 €
Located under down tube (seat tube and top of down tube included)

Dynamo-ready routing and mounts

+ 160 €
Custom mount for rear light + fork dynamo routing

Integrated steel seat tube

+ 230 €
Comes with its custom 3D printed aluminium seat mast

Custom stem

+ 320 €
Choose your length and stem angle

Paint

Chameleon or Candy

Solid color painted logos

+ 180 €

Paint effect two colors

Solid color painted logos

+ 280 €

Paint effect one color

Solid color painted logos

+ 220 €

One color glitter

Solid color painted logos

+ 140 €

Three color fade

Solid color painted logos

+ 90 €

Two color fade

Solid color painted logos

included

Solid color

Solid color painted logos

included

Full custom on request (gold leaf, marble effect, splatter, chameleon fade or whatever you have in mind just get in touch with us and we will discuss it together)
