setonix

Street track

Meet the setonix

Specs

Tubing	Dedacciai Zero 25th anniversary
Dropouts	Stainless steel horizontal
Fork	Wound up (4 to 6 months lead times) Or Steel Colombus Max (no lead time)
Bottom bracket	BSC 68mm
Headset	External 1”1/8 (EC34/28.6 - EC34/30)
Seatpost diameter	27,2mm
Spacing	100mm front, 120mm rear
Tire clearance	700 x 28mm (700 x 30 mm with the steel fork)
Approximative weight	Around 1550 grams in size Medium (frame only)
Brakes	Fork only

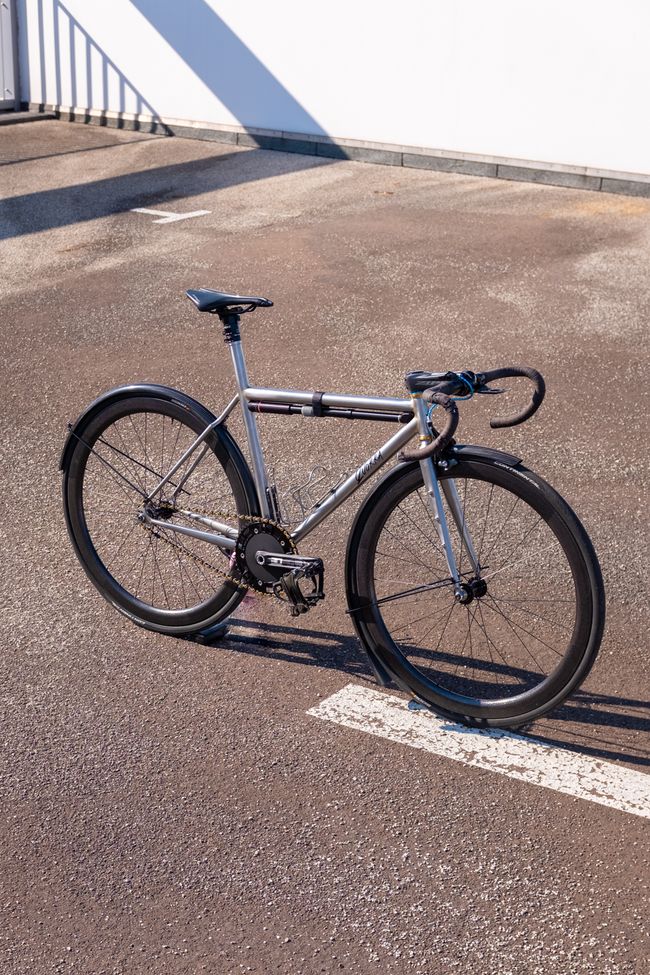

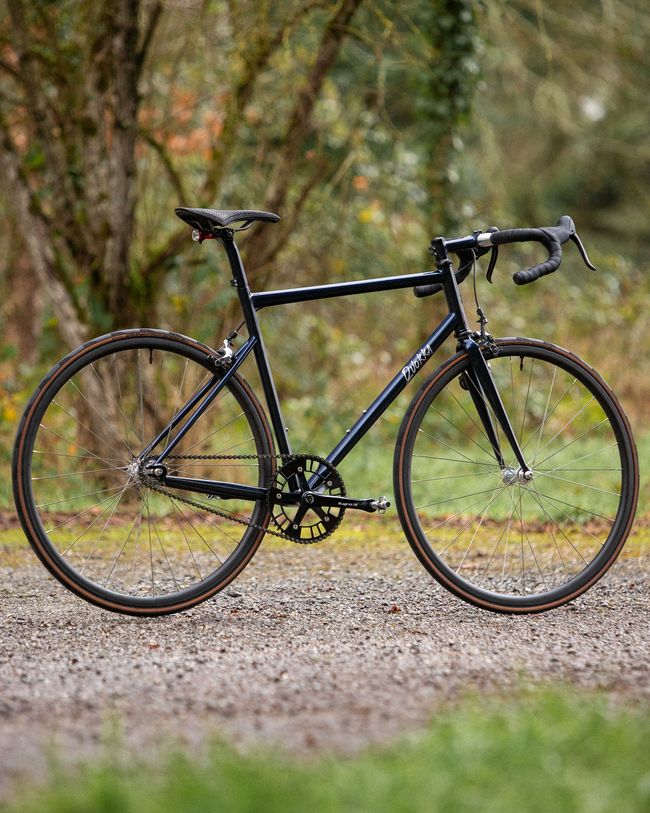

This well known bike now has a name! Say hi to the Setonix. If you want to shred the streets or just be the cool kid of the group ride, this frame is made for you! This model is the result of hours of design and mind torturing to find the balance between not enough and too much. Bringing a steel lightweight, performant, attractive and comfortable fixed gear isn’t an easy task, but we did it, and we did it well. The bespoke fixed gear bike designed for urban shredders and style-conscious riders. With a lightweight steel frame that's both strong and comfortable, the Setonix is built to handle anything the city can throw at you. The sleek and stylish design turns heads, but it's the bike's quality that really sets it apart. Thanks to its responsive handling and smooth ride quality, the Setonix is perfect for quick sprints or longer rides. So whether you're racing through traffic or cruising with friends, the Setonix has the speed and agility you need to dominate the streets.

Frame features

Welding type

Fillet brazed with a smooth filed finish

Chain Stays shape

Straight

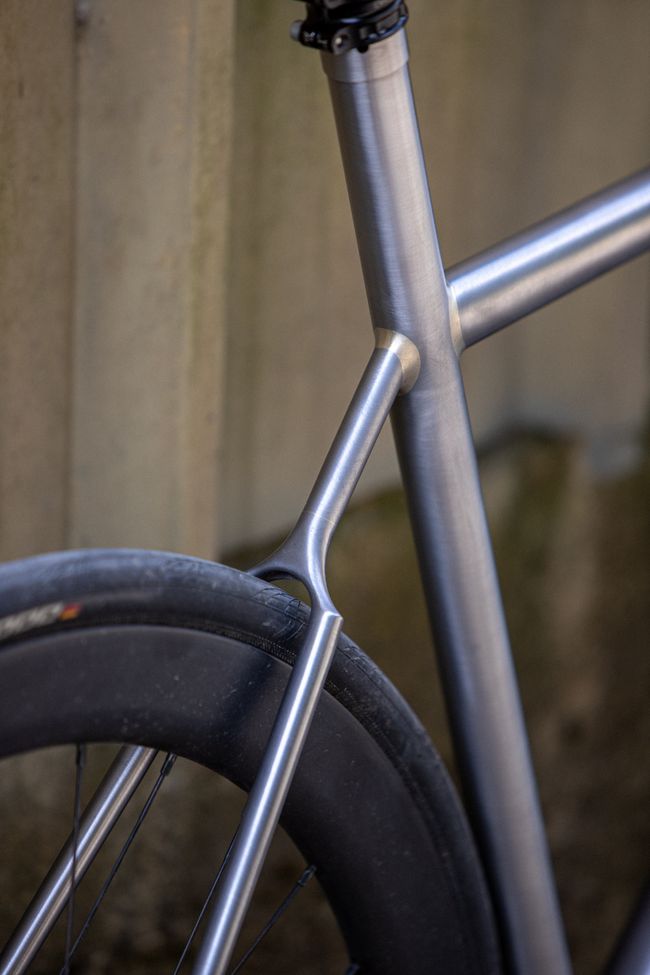

Seat Stays Shape

Wishbone

Seat clamp

Brazed

Tube shape

Round and ovalized

Serial number

Stamp brass plate under the bottom bracket shell

Frameset pricing

from 2540 €

Pre-tax: 2117 €

Join the waiting list

Browse options below ↓

Learn more about the ordering process

Geometry

setonix	XS / 50	S / 52	M / 54	L / 56	XL / 58
A / Effective Top Tube	500	525	540	560	580
B / Seat tube (c to c)	476	508	540	560	580
C / Chainstay	380	382	382	384	384
D / BB drop	50	50	50	50	50
E / Head tube	95	115	140	160	175
F / Reach	380	391	390	404	415
G / Stack	493	512	540	561	576
H / Wheelbase	932	948	945	962	978
I / Axle to crown	368	368	368	368	368
R / Fork rake	35	35	35	35	35
X / Seat tube angle	76	75,5	74,5	74,5	74
Y / Head tube angle	72,5	73	74	74,5	74,5

Options

Water bottle bosses

+ 55 €
Zero or one pair included in price, more in option

Stainless steel brazed head badge

+ 35 €

Columbus max tubing

+ 150 €

Columbus max steel fork

included

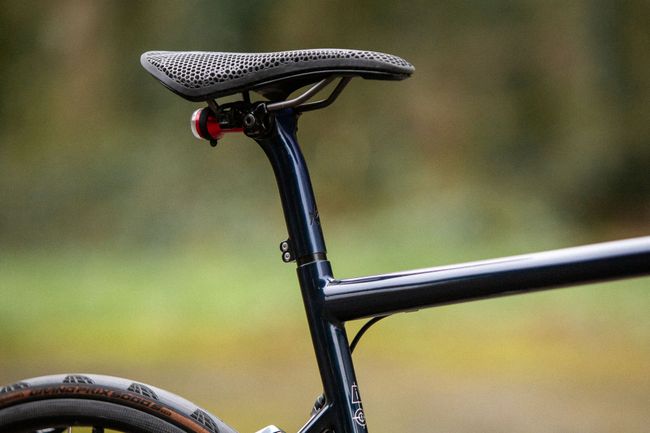

Integrated steel seat tube

+ 230 €
Comes its custom 3D printed aluminium seat mast

Custom stem

+ 320 €
Choose your length and stem angle

Custom geometry

+ 150 €
Within our size chart, if you’re outside of the chart, we’ve got you covered for free!

Paint

Chameleon or Candy

Solid color painted logos

+ 180 €

Paint effect two colors

Solid color painted logos

+ 280 €

Paint effect one color

Solid color painted logos

+ 220 €

One color glitter

Solid color painted logos

+ 140 €

Three color fade

Solid color painted logos

+ 90 €

Two color fade

Solid color painted logos

included

Solid color

Solid color painted logos

included

Full custom on request (gold leaf, marble effect, splatter, chameleon fade or whatever you have in mind just get in touch with us and we will discuss it together)

Frameset pricing

from 2540 €

Pre-tax: 2117 €

Join the waiting list

Learn more about the ordering process
